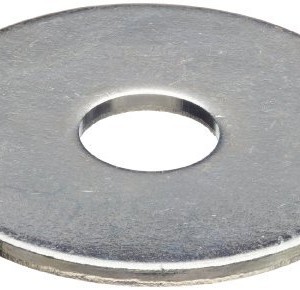

Fender Washers Dimensions and Pieces
18
Jan
| Fender Washers Dimensions and Pieces / 40 Lbs | ||||||
| Size | Hole Diameter (ID) | Outside Diameter (OD) | Thickness | Approx pcs / 100 Lbs | Approx pcs / 40 Lbs | Approx Weight |
| In Inches | 100 pcs in Lbs | |||||
| 3/16 (#10) | 13/64 | 3/4 | 3/64 | 18,520 | 7,408 | 0.54 |
| 3/16 (#10) | 13/64 | 1 | 3/64 | 7,500 | 3,000 | 1.33 |
| 1/4 | 9/32 | 1-1/4 | 1/16 | 5,000 | 2000 | 2.00 |
| 1/4 | 9/32 | 1-1/2 | 1/16 | 3,000 | 1200 | 3.33 |
| 5/16 | 11/32 | 1 | 1/16 | 8,320 | 3.328 | 1.20 |
| 5/16 | 11/32 | 1-1/4 | 1/16 | 5,260 | 2,104 | 1.90 |
| 5/16 | 11/32 | 1-1/2 | 1/16 | 3,600 | 1,440 | 2.78 |
| 3/8 | 13/32 | 1-1/2 | 1/16 | 3,500 | 1,400 | 2.86 |
| 1/2 | 13/32 | 1-1/2 | 1/16 | 2,800 | 1,120 | 3.57 |
| 1/2 | 13/32 | 2 | 1/16 | 1,960 | 784 | 5.10 |
